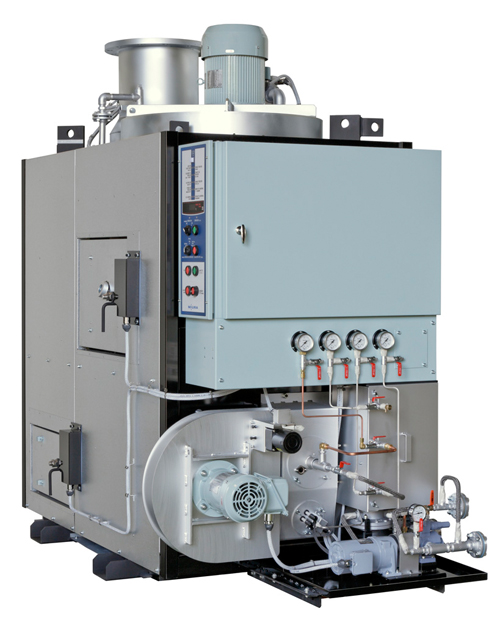

SHIPBOARD INCINERATOR
BGW-N
BGW-20N~100N
Max. Capacity: 301~1299KW
Waste oil Capacity: 233KW~1163KW
Solid Waste Capacity: 20kg/h~40kg/h
|
 |
Lioyd��s Register Approved.
Miura introduce shipboard incinerator model "BGW-N", complied with "CE" MA***NG of marine equipment directive for EU FLAG starting May.1,1999. and "IMO" MARPOL73/78/97 ANNEX VI starting Jan.1,2000.
BGW-N series incinerate simultaneously with waste oil and solid wastes which are processed specified in IIA classII.
(MEPC 76(40) ANNEX A1.4) |
Out Line
This applies to all new IMO MARPOL
In order to prevent the pollution of oceans and seas,IMO MARPOL establishes guidelines for solid and liquid waste discharged from ships.
The regulations regarding Shipboard incinerators are as follows:
|
| MARPOL73/78/97-MEPC76(46) |
| Object: |
Any incinerator loaded on board a ship on or after January1,2000 |
| Summary: |
The prohibition of Shipboard incineration of waste materials containing
PCBs, heavy metals, or similar contaminants
The incinerator must be approved by IMO��MEPC
The incinerator must be designed according to MEPC 76(40)standards
|
| Conditions of operation: |
MARPOL 73/78/97 ANNEX VI Reguration16
Oxygen concentration in the combustion chamber:6-12%
Outlet temperature of the combustion chamber:850-1200��
Carbon monoxide concentration in exhaust gas:not to exceed 200mg/MJ
Smoke concentration in exhaust gas:not to exceed BACHARACH 3
Weight of unburned material:not to exceed 10%
Temperature of outer wall:not to exceed 60��
Exhaust gas is to be rapidly cooled to 350�� or less within a space of 2.5meters in the smokestack.
The combustion chamber is normally to be operated in a negative-pressure environment.
Requirement for residual heat:650�� or more(continuous charge incinerator)
It shall be 600�� in at least 5minutes(batch disposal incinerator)
|
|
|
 |
Special Features
- 20kg of solid waste can be put into the incinerator at one time and burned simultaneously with waste oil.
Ships with a 25-man crew produce up to about 20 kg of waste per day. Since all this waste can be charged into the incinerator at one time, the work is reduced.
At the same time,a fixed amount of waste oil can also be incinerated.
- Miura's unique incinerator structure
Using the unique semi-disrillation-type incineration method,materials containing a lot of water can be burned simultaneously with producers of high heat such as plastics.Furthermore, since this incinerator can be opened from both sides of the burner, it can easily repaired and maintained.
- The waste oil burner users a high-performance air atomizer
The combination of spesialized fan and enhanced combustibility air-atomizing burner help to support efficient vaporized incineration.
- Automatic combustion control
Purge, ignition, combustion and cooling within the incinerator are all controlled automatically (Required job is the switching operations of the cooling fan and insertion of combustion only.) During incineration, various safety limit switches monitor operations to reduce hazards.
*When waste oil is in extremely bad condition, the pilot burner and waste oil burner are set to incinerate simultaneously.
- Ejector system
The ejector, which is installed at the incinerator exit,maintains the negative pressure within the incinerator and cools gases by mixing them with diluted air.
In conventional incinerators, exhaust gases coming from the incinerator contain many corrosive gases,so the fan is corroded in exhaust systems that use a suctioning fan. However, with the model BGW-N incinerator, the ejector system protects the fan from corrosive gases.
- Suppression of dioxins
Dioxins sre formed when incompletely burned waste at incinerator exit combines with chlorides in a temperature environment of 300-400�� However,the model BGW-N incinerator is equipped with an ejector at the exhaust duct that mixes exhaust with cold air and it instantaneously to 200�� or less to sappress the formation of dioxins.
|
|

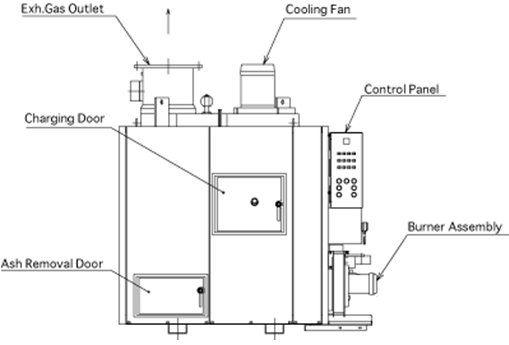

Drawings
|
|
|
|
