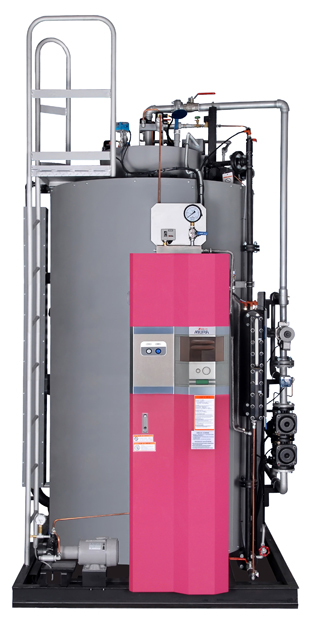

Boiler

CZI

95% boiler efficiency!

• High efficiency contributes to energy conservation and reduction of CO₂
• Choose from 2 models to match your site requirements

S-model : boiler efficiency 95%
(O₂=value based on 5%)

H-model : boiler efficiency 90%
(O₂=value based on 5%)

Unique fins = ω (omega) flow construction and superior corrosion-resistant economizer

A boiler efficiency of 90% has been achieved with Miura's proprietary heat transfer fins. That efficiency can be raised to 95% with the addition of an economizer. With a reliable steam supply and economical operating costs it is the boiler to satisfy your particular steam requirements.

The "Intelligent Boiler" from Miura: simple operation and multi-functions
• Ignition status, blowdown management, and other boiler conditions are displayed full time on the operating panel in clear and easy to understand numbers and graphics.
• Boiler status can be seen at a glance and pre-emptive fault management is made possible through alert functions.

Scale monitor/Boiler thermostat Measures the temperature of the water tubes and monitors the level of scale. If the temperature becomes abnormally high a safety backup is provided by means of the boiler thermostat.	Flame current/blowdown solenoid valve operating status Displays stability of flame. It is possible to see normal blowdown operation status.
Water level and remaining time to blowdown Displays the water level status and the time remaining before a preset complete blowdown starts.	Remaining time to soot blow Displays the time remaining before a preset soot cleaning operation starts.
Boiler operating time Records low and high fire time and confirms boiler load status. Uses the results as heat management data.	Prevents boiler shutdown Alarm functions 29 functions including flame sensor degradation, water supply failure, scale buildup, blowdown timing, pump capacity degradation, water level electrode fault, insufficient air volume, and reverse flow.
